Traduzione dell’articolo di Mark Overmars, Utrecht University.
Una versione più breve di questo articolo è apparsa con il titolo Teaching Computer Science through Game Design nel numero di Aprile 2004 di IEEE Computer.
Mark Overmars is a full professor in the Department of Computer Science, Utrecht University, and heads its Center for Geometry, Imaging, and Virtual Environments.
He is the author of Game Maker.
Contact him at markov@cs.uu.nl.
As a youth taking my first steps toward learning how to program a computer, I remember how exciting it was to write a program that printed the first 100 prime numbers.
Nowadays, computer programs with fancy interfaces that provide access to music, video, and games have become commonplace, and such results no longer fascinate novice programmers.
Instead, initiates want to be the ones who create these complex and attractive programs.
Unfortunately, even with the most wonderful application-development tools available, creating these programs requires a huge amount of work and a deep understanding of the computer system, programming language, available libraries, and development tool used.
How then do we transform computing consumers into creators?
LOGO e LEGO
Logo (www.logosurvey.co.uk) and its many variants provide the classic example of a programming language aimed at creating interest among youngsters.
Primarily seen as a language to make drawings, with Logo, the user steers a virtual turtle to draw shapes onscreen.
Even the basic program can make fancy drawings this way, while modern versions extend Logo’s possibilities considerably.
For today’s users, spoiled by console and computer games, Logo is no longer flashy enough, however.
Steering a virtual turtle can’t possibly compare with steering a real robot, which probably accounts for much of Lego Lego MindStorms‘ success.
With the admittedly limited software that comes with this system, users can create and program their own robots.
Fortunately, third-party developers have written complete programming languages for these robots, most notably NQC (http://bricxcc.sourceforge.net/nqc/).
The main disadvantages of using robots to learn programming are their expense and limited programming possibilities.
On the other hand, robots do provide great vehicles for explaining concepts such as sensing, control loops, and parallel tasks.
PROGETTAZIONE DI GIOCHI
Playing computer games is a popular recreational activity for young people.
Not surprisingly, many of these enthusiasts dream that one day they will develop computer games themselves.
So why not use game design as a vehicle to teach youngsters computer science?
Developing computer games involves many aspects of computing, including computer graphics, artificial intelligence, human-computer interaction, security, distributed programming, simulation, and software engineering.
Game development also brings into play aspects of the liberal arts, the social sciences, and psychology.
Creating a state-of-the-art commercial computer game is an incredibly difficult task that typically requires a multimillion-dollar budget and a development team that includes 40 or more people.
But simpler alternatives -ones within the reach of students and hobbyistsexist.
Great games do not necessarily need fancy 3D graphics or huge game worlds.
Budding game developers can have fun creating variations on Pac-Man, Space Invaders, or simple platform games.
And with some creativity they might even develop new game concepts.
GAME MAKER
Writing a game like Pac-Man from scratch in a modern programming language is still difficult.
Many gifted developers have embarked on such projects only to have their attempts end in frustration.
Fortunately, several currently available tools make game creation easier.
With StageCast (www.stagecast.com), a tool that specifically targets children, the creator defines rules that link existing graphical situations to new situations.
For example, a StageCast user can create a rule that states if an empty space lies to the right of a character, that character can move to occupy the space.
This results in a motion to the left until an obstacle is encountered.
Combining multiple rules that also involve user input controlled behavior emerges.
Although intuitive, this approach can create only rather simple games.
Likewise, ClickTeam (www.clickteam.com) produces several tools such as Click and Play and The Games Factory for creating games.
These tools can be used to create more complex games, but they offer only limited programming possibilities.
Many similar packages exist, several of which can be found at www.ambrosine.com/resource.html.
One such program written by the author, Game Maker (www.gamemaker.nl), is a rapid-application development tool currently used worldwide by young people at home and in schools to create two-dimensional and isometric games.
With Game Maker’s drag-and-drop techniques, users can create games without writing a single line of code-but it also includes an interpreted programming language.
The program produces stand-alone games that can be distributed freely; a version of Game Maker itself is available for free as well.
Game Maker has become extremely popular during the past few years.
In 2003, users downloaded 1.7 million copies of the program.
Further, an active user group has a forum on which users post more than 1,000 messages daily http://forums.gamemaker.nl).
The youngest users, 8-year-olds, receive their introduction to computer programming through Game Maker.
The oldest users, 80-year-old senior citizens, find a new hobby in the creation of games-and sometimes a new profession.
PROGRAMMAZIONE ORIENTATA AGLI OGGETTI
Game Maker defines behavior in event-driven terms.
Many teachers indicate that it is difficult for students to understand object-oriented programming.This is somewhat surprising because object-oriented design is very natural.
In real-life we think in terms of objects with certain properties and behavior.
Still, once people write a program they tend to adopt the traditional view of instructions being executed and control structures.
But when you are creating computer games, this changes.
In a computer game, everything is an object: the monsters, wall segments, coins, bonuses, power-ups, and the guns and bullets.
Thinking about creating games means thinking about objects and how they react to one another and to the player’s input.
So the game creator naturally thinks in an object-oriented way.
To create a game using Game Maker, the designer creates objects.
Some objects have a visual representation, such as an animated sprite.
Others, like those that control game flow or maintain the score, might lack this feature.
Multiple instances of the same object can appear in the game at the same moment.
Instances have properties.
Some are built-in, like the speed with which the instance moves and the sprite used to represent it.
Others can be defined, manipulated, and checked using actions or code.
The user must define each object’s behavior.
While some objects, like wall segments, will have no behavior, others, like the avatar representing the player, will most likely have complicated behavior.
Events occur for objects, and the designer specifies actions that the game must execute when these events occur.
Typical events include object creation or destruction, user input, collisions between instances, alarm clocks, and events that happen at each step.

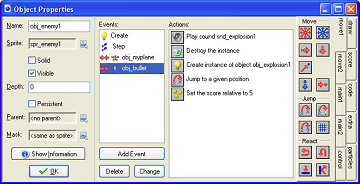

To achieve this, the game designer can simply drag and drop actions into events, as Figure 2 shows.
Game Maker has more than 100 built-in actions, ranging from moving the object in a particular direction to playing a
sound or displaying a high-score list.
For more advanced tasks, the designer uses a code action to type in pieces of code that are executed when the event occurs.
Within this code are close to 1,000 possible functions that can control all aspects of the game, including a particle system and network play functionality.
EREDITARIETÀ
Inheritance, a powerful object-oriented programming concept, can be difficult to grasp in traditional applications.
In game creation, however, understanding how inheritance works comes naturally.
Take, for example, the well-known class of games based on Breakout, in which the user must destroy stones by hitting them with a bouncing ball.
All stones exhibit similar behavior but will appear in a variety of shapes and colors.
These characteristics make it logical and efficient to create one stone object and specify its behavior, then create similar objects with different colors that inherit the original stone object’s behavior.
With Game Maker, users achieve this by simply setting the object’s parent field.
A child object inherits all behavior from its parent.
Some stones might have slightly different behavior-players might, for example, need to hit them twice to destroy them.
To achieve this, users can simply override certain events and specify different actions for them.
Users find this to be an extremely powerful mechanism that leads them intuitively into object-oriented design.
INTELLIGENZA ARTIFICIALE
Once users become familiar with basic game creation, their interest usually turns to new areas such as behavior and artificial intelligence.
This desire pulls the novice user deeper into the world of computing.
Objects in a game require behavior.
Even the ghosts in Pac-Man have some reasonably complex behavior.
These enemies try to catch the player’s character.
Likewise, when the character eats a power-up pill, the ghosts flee in simulated terror.
Further, the ghosts have differing behaviors: Some run toward the player while others guard specific areas of the playfield.
Adding such behavior to a game requires some intuitive knowledge of rule-based systems
and finite state machines.
The ghosts, for example, can be in different states.
Their behavior depends on their state and on information about the position of walls and the player.
When particular events occur, the ghosts change.
When the character eats a pill the ghosts change from hunter to hunted.
When a timer runs out they change back to hunter.
And when they are caught by the player they turn from hunted to being dead.
Such state-changes are easily described by a finite-state diagram in which the different states and state-changes are described.
Game Maker can easily demonstrate such concepts.
For each state a separate object can be defined with the corresponding behavior. When a state-changing event occurs, the
ghost instances can change into a different object using a single action.
CONCETTI PIÙ AVANZATI
Step by step the users will explore more advanced concepts of computer science.
Some want to create games with more elaborate graphics, such as those viewed from an isometric perspective.
Or they start using particles systems to create fancy effects such as star fields, fireworks, flames and flying debris.
Others might become interested in creating networked games in which multiple payers on different machines can play a game together.
This will lead them into issues of message passing and synchronization.
Again others might become interested in how to simulate real-world physics, such as the motion of a car in a racing game.
The possibilities are endless.
INSEGNARE LA PROGETTAZIONE DI GIOCHI
Game Maker is being used for teaching at all levels.
Several organizations use the program in technology summer camps, most notably the Children’s Technology
Workshop (www.ctworkshop.com), which offers a complete camp curriculum based on the program and licenses its use to others.
Several elementary schools have begun using Game Maker to stimulate student interest in computing.
Educators have increasingly incorporated game design into high school computer science curricula.
Generally, students respond enthusiastically to these courses because they prefer programming in Game Maker to doing their usual assignments.
But game design offers more than mere programming.
To design an effective game, students must think about the rules that define the game play.
Such rules must be consistent and fair.
A gripping storyline is often required for a game.
The user-interface must be designed and effective artwork and sounds must be created or sought.
And after the programming, the game must be tested and tuned for best playability.
Finally, documentation must be written.
Creating a game makes an excellent group project in which students can combine their creativity and interests.
Game Maker also is used in the game design course taught at Utrecht University (www.cs.uu.nl). In this course, students first learn the basic concepts of designing games: how to set up the game’s rules, describe the game in a design document, specify the game objects’ behavior, and, most importantly, make a game fun to play.
Later in the course, students also explore three-dimensional game design but often they are more satisfied with their two-dimensional creations.
For more information about teaching game design with Game Maker, see www.gamemaker.nl/teachers.html.
CONCLUSIONI
Sono stati realizzati molti giochi appassionanti con Game Maker.
Molti altri si possono trovare nel sito ufficiale di Game Maker.
Ancora più importante, gli utenti preferiscono creare i giochi e contemporaneamente imparare a programmare e altri aspetti avanzati dell’informatica.
La creazione di giochi attira a tutte le età e sia i maschi che le femmine come è dimostrato dai numerosi utenti attivi di sesso femminile di Game Maker.
Inoltre e soprattutto, gli utenti di questi applicativi imparano che la creazione di giochi può essere più divertente del gioco stesso.
